openstack云计算管理平台

一、准备：

a.克隆一台虚拟机

b.开启虚拟化支持

c.光盘连接

d.地址为10.0.0.11

e.选择centos7.6映像

二、上传相关文件

[root@controller ~]# ll /root/openstack/
total 257244
-rw-r--r-- 1 root root  13287936 Dec 25  2016 cirros-0.3.4-x86_64-disk.img
-rw-r--r-- 1 root root     26505 Nov 21  2017 local_settings
-rw-r--r-- 1 root root      6388 Oct 28  2019 openstack_compute_install.sh
-rw-r--r-- 1 root root   2592404 Jul 17  2017 openstack-manuals_html.tar.gz
-rw-r--r-- 1 root root     22917 May 21  2019 openstack-mitaka-autoinstall.sh
-rw-r--r-- 1 root root 247468369 Jul 19  2017 openstack_rpm.tar.gz

三、解压rpm包到指定路径下

[root@controller ~]# tar xf openstack_rpm.tar.gz -C /opt/

四、挂载光盘

[root@controller ~]# mount /dev/cdrom /mnt/

五、执行脚本安装openstack

[root@controller ~]# cd openstack/
[root@controller openstack]# sh openstack-mitaka-autoinstall.sh

六、安装完成，用浏览器登录10.0.0.11地址

+-----------------------+--------------------------------------+
| Field                 | Value                                |
+-----------------------+--------------------------------------+
| id                    | 38385b2f-6ff4-46d6-b108-49c04263b894 |
| ip_protocol           | tcp                                  |
| ip_range              | 0.0.0.0/0                            |
| parent_group_id       | ca06fc30-2c70-46df-8070-670a0d24096a |
| port_range            | 22:22                                |
| remote_security_group |                                      |
+-----------------------+--------------------------------------+
安装完成，使用浏览器访问http://10.0.0.11/dashboard

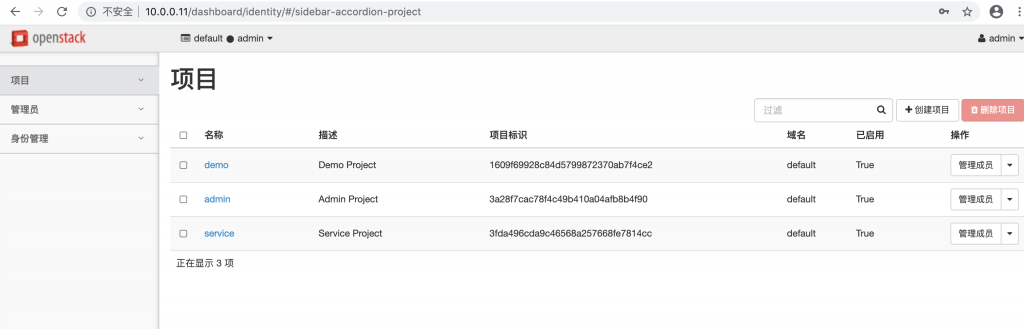

七、输入登录信息：域(default)，用户名(admin)，密码(PASS_ADMIN)，进入页面

八、新增一个计算节点，地址为10.0.0.12，拷贝文件过去

[root@controller openstack]# scp openstack_rpm.tar.gz openstack_compute_install.sh 10.0.0.12:/root

九、在计算节点上解压rpm软件包

[root@compute1 ~]# tar -xf openstack_rpm.tar.gz -C /opt/

十、挂载光盘

[root@compute1 ~]# mount /dev/cdrom /mnt/

十一、运行安装openstack计算节点脚本

[root@compute1 ~]#  sh openstack_compute_install.sh

十二、运行脚本无误完毕，显示为：

Dependency Installed:
  openstack-neutron-common.noarch 1:8.4.0-1.el7  python-beautifulsoup4.noarch 0:4.4.1-3.el7
  python-html5lib.noarch 1:0.999-5.el7           python-httplib2.noarch 0:0.9.2-1.el7
  python-logutils.noarch 0:0.3.3-3.el7           python-neutron.noarch 1:8.4.0-1.el7
  python-neutron-lib.noarch 0:0.0.3-1.el7        python-ryu-common.noarch 0:4.3-2.el7
  python-simplegeneric.noarch 0:0.8-7.el7        python-waitress.noarch 0:0.8.9-5.el7
  python-webtest.noarch 0:2.0.23-1.el7           python2-designateclient.noarch 0:2.1.0-1.el7
  python2-pecan.noarch 0:1.0.2-2.el7             python2-ryu.noarch 0:4.3-2.el7
  python2-singledispatch.noarch 0:3.4.0.3-4.el7

Complete!
Created symlink from /etc/systemd/system/multi-user.target.wants/openstack-nova-compute.service to /usr/lib/systemd/system/openstack-nova-compute.service.
Created symlink from /etc/systemd/system/multi-user.target.wants/neutron-linuxbridge-agent.service to /usr/lib/systemd/system/neutron-linuxbridge-agent.service.

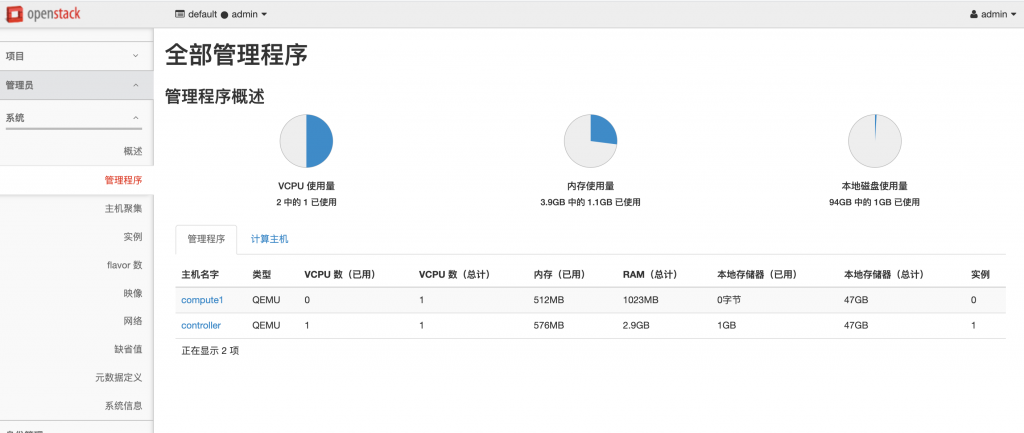

十三、刷新，出现新的节点
