镜像地址：http://cecos.openfans.org/download.htm
加载cecos.iso光盘镜像。选择centos7 64位操作系统。然后就是安装引导界面，选择第一步。

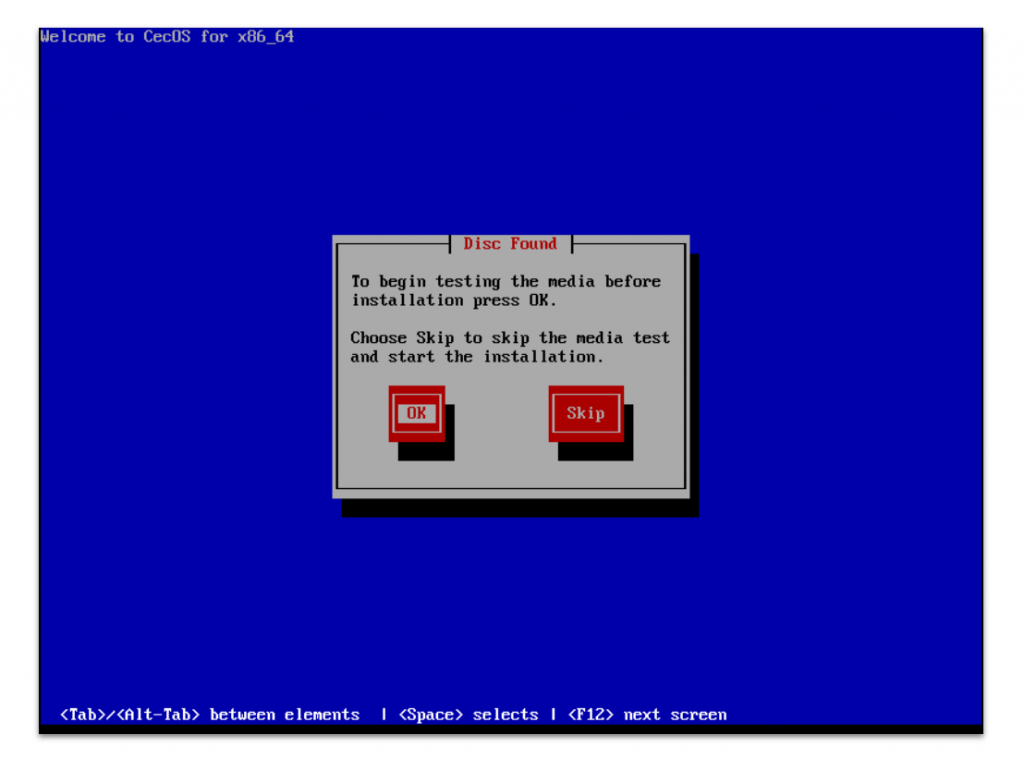

选择skip，跳过检查步骤。

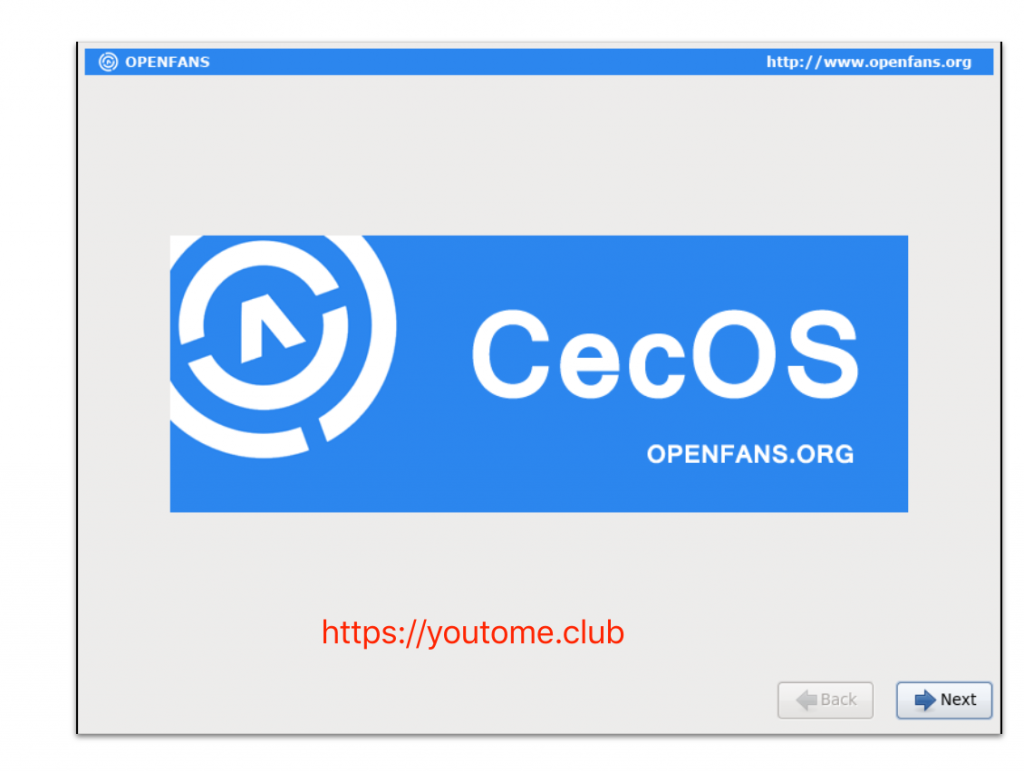

安装欢迎界面

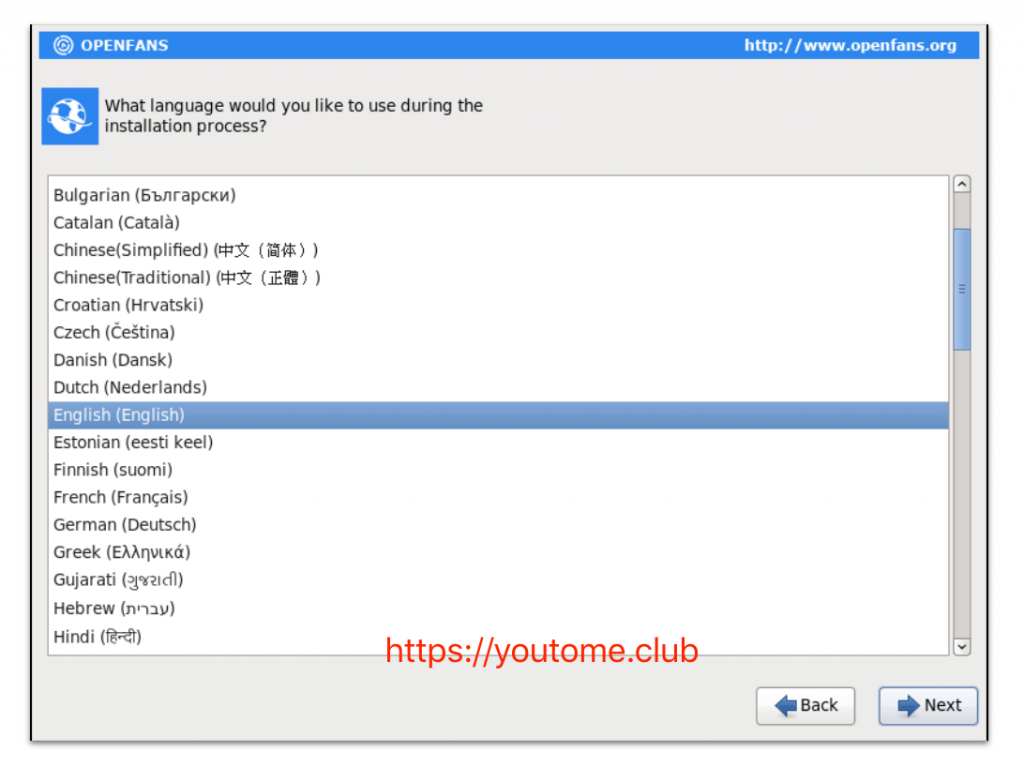

选择安装的语言

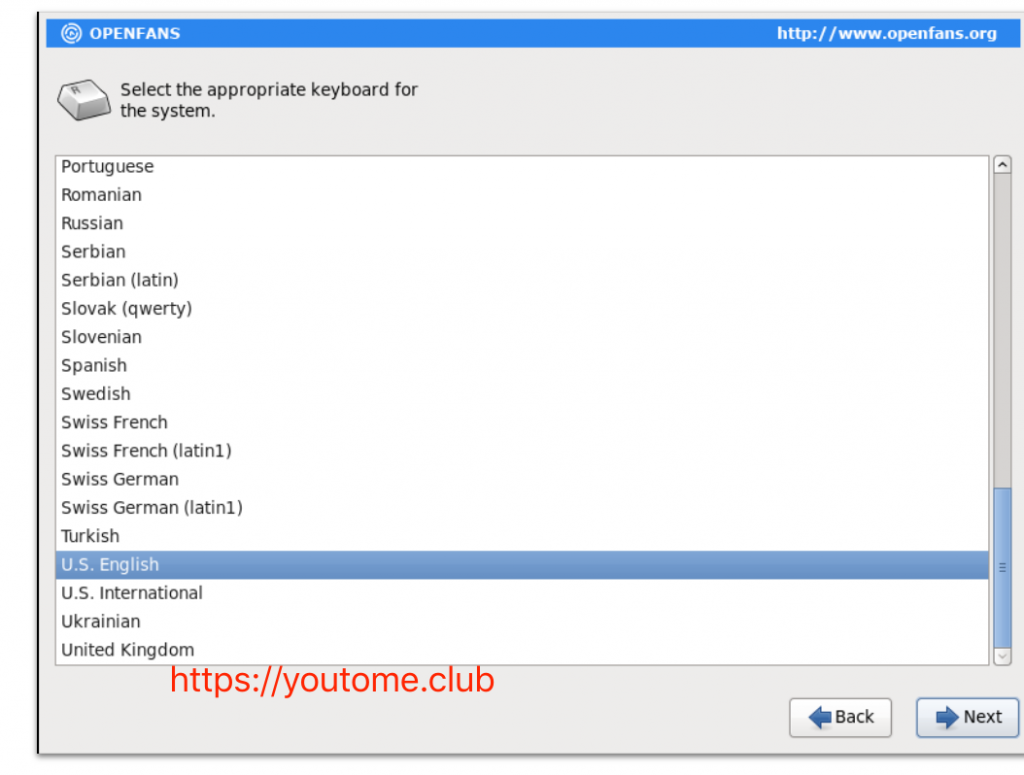

选择键盘类型

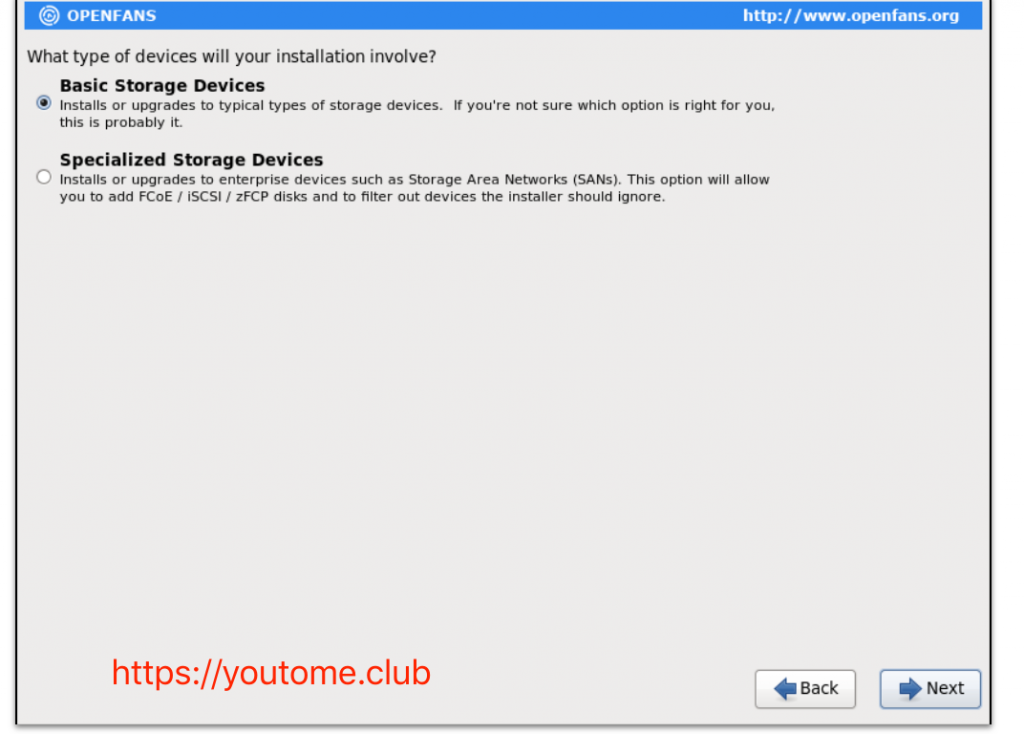

选择需要安装的磁盘类型

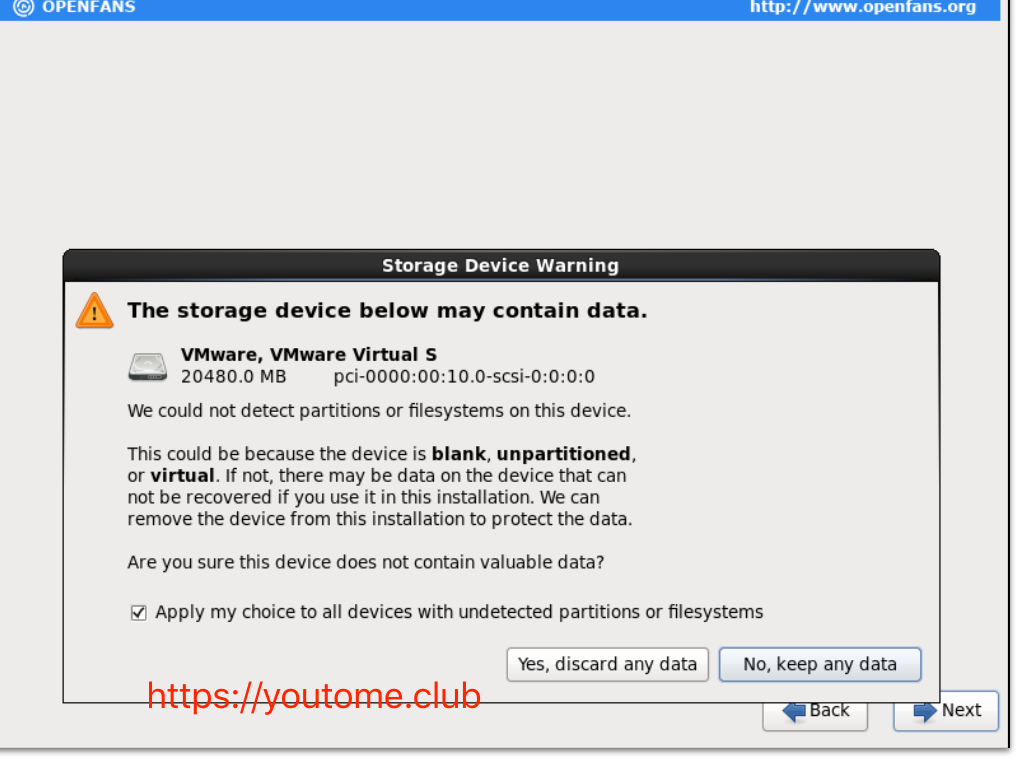

格式化

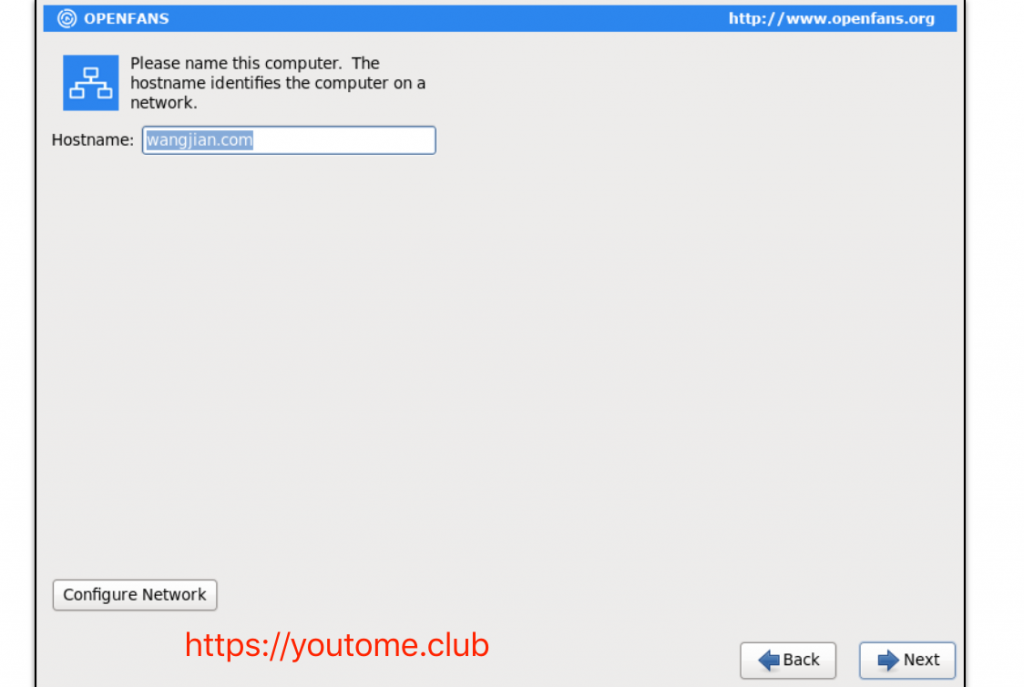

设置主机名

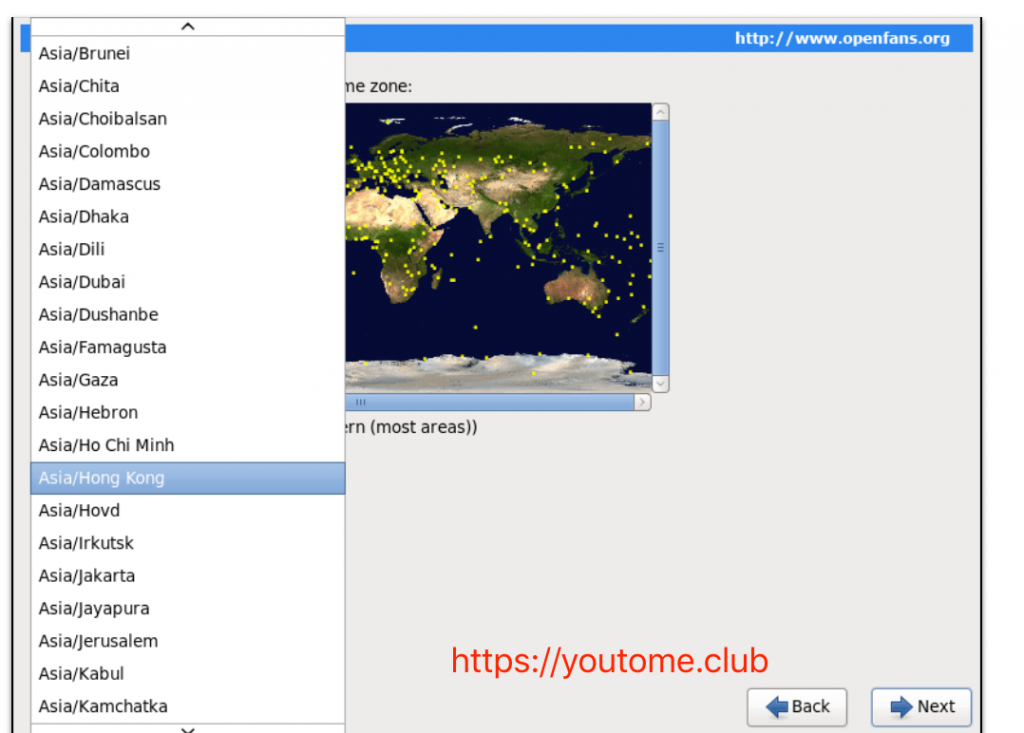

选择地区

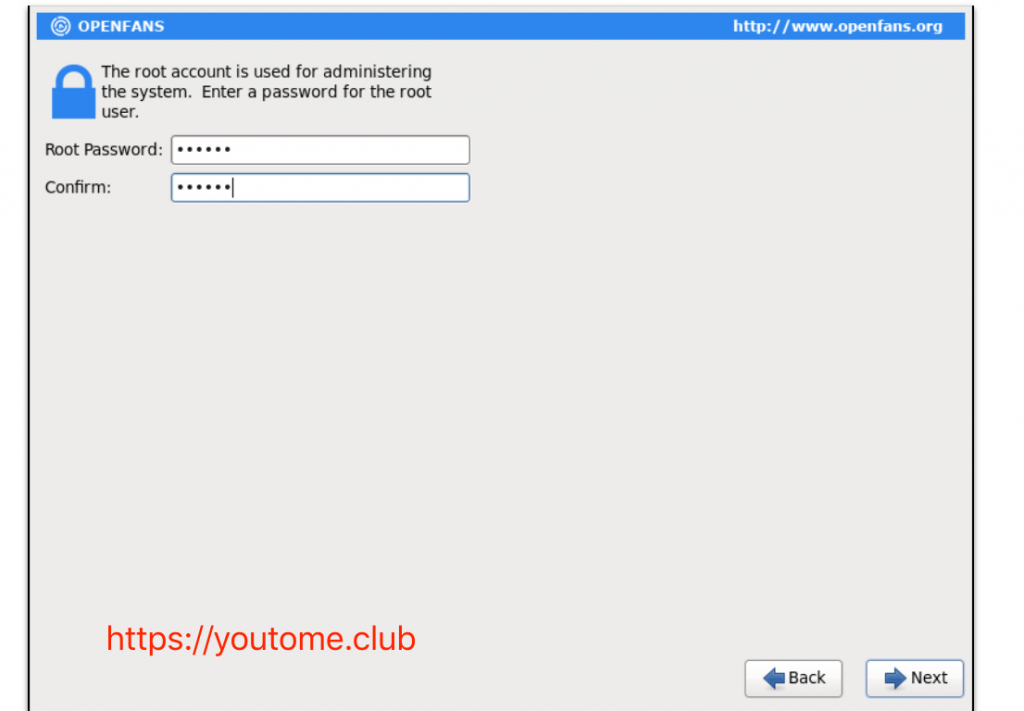

设置密码

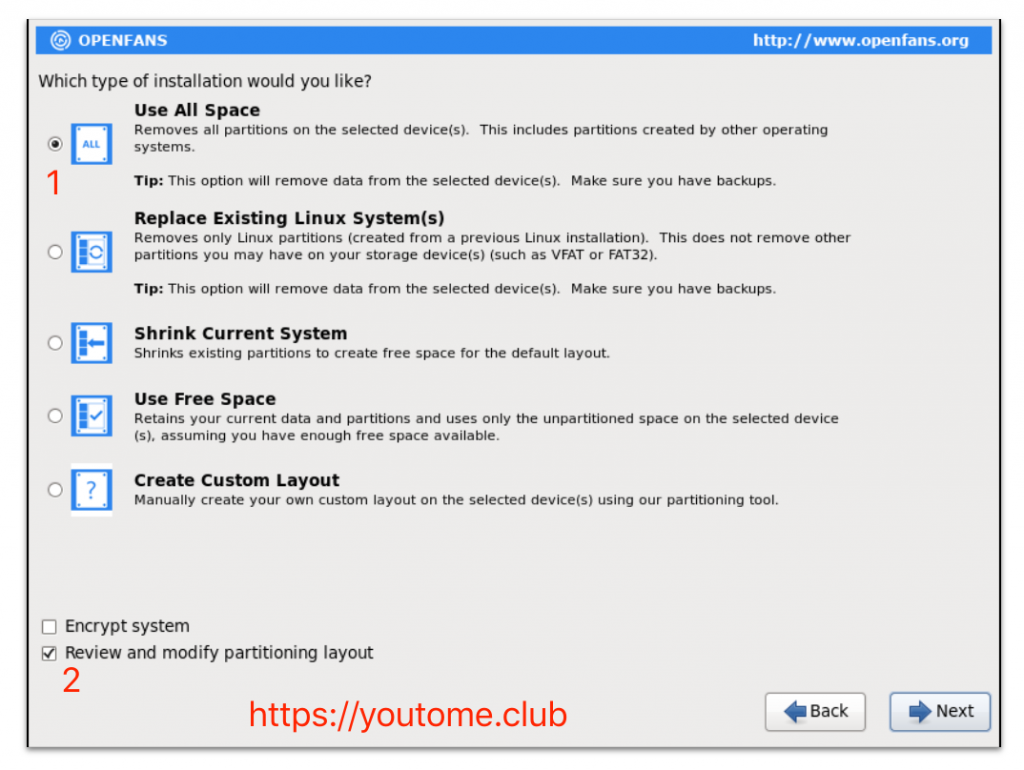

如果为空盘，选择第一个选项，并选择底部的选项

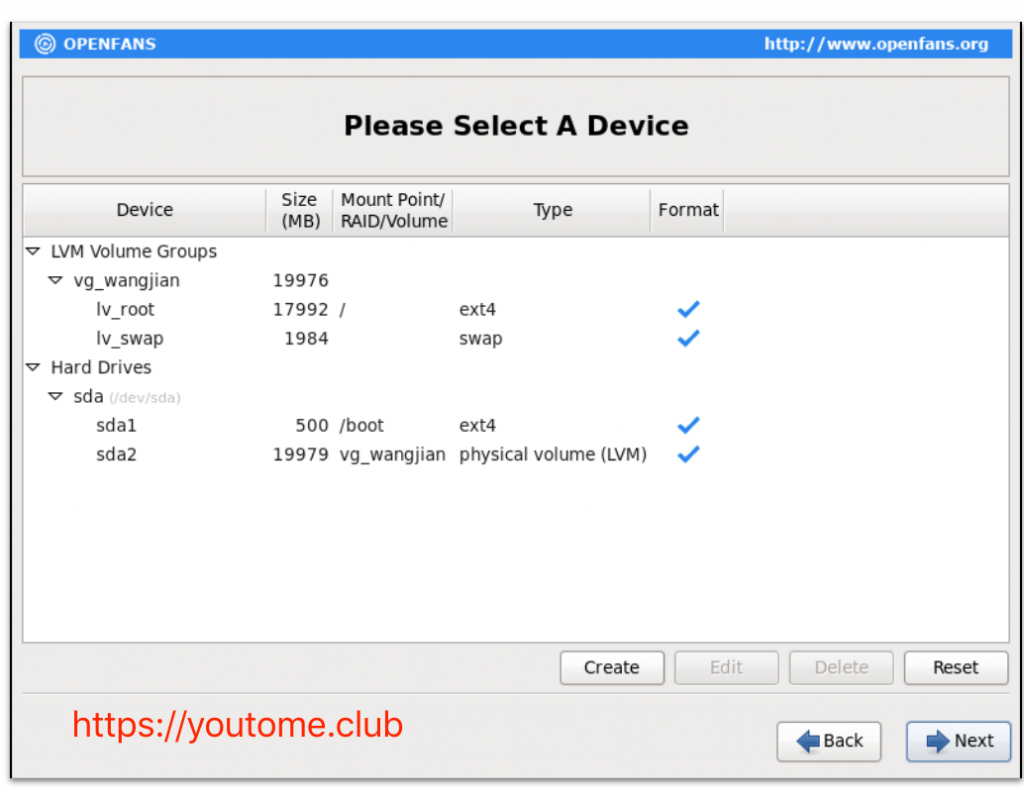

硬盘分区状态，可手动修改

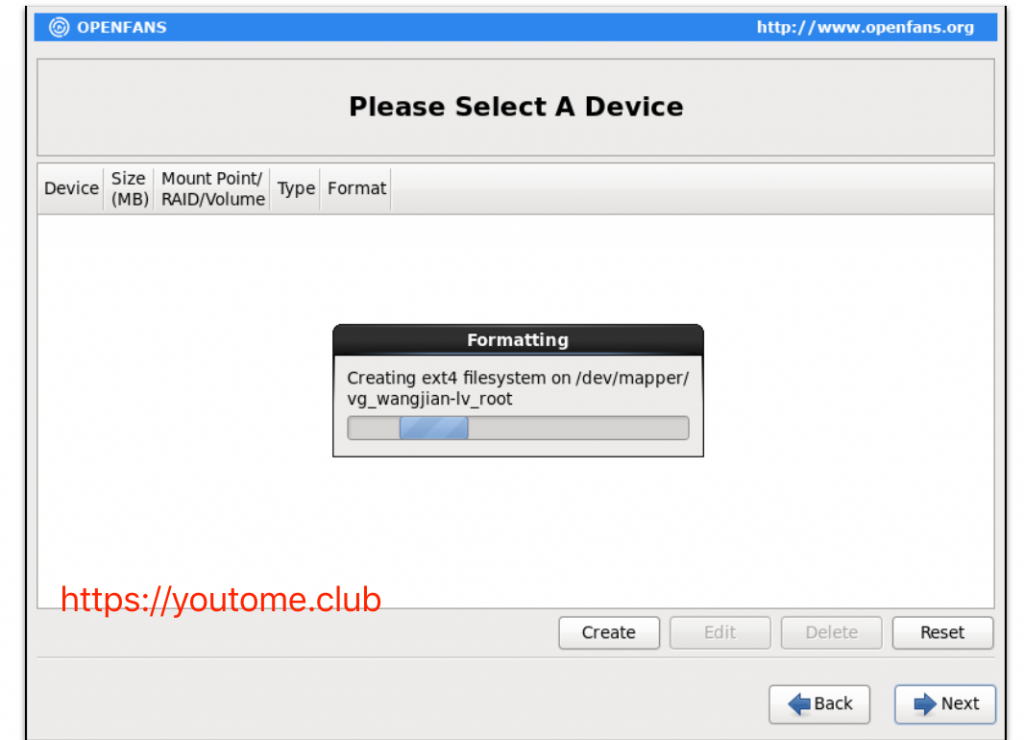

格式化

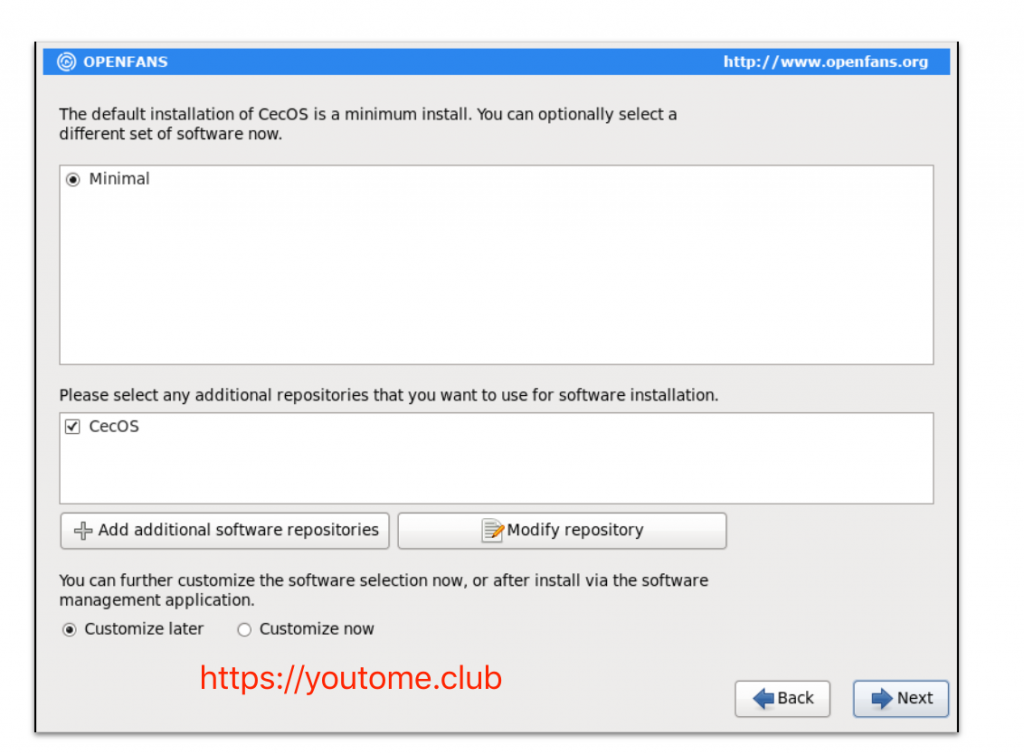

最小化安装

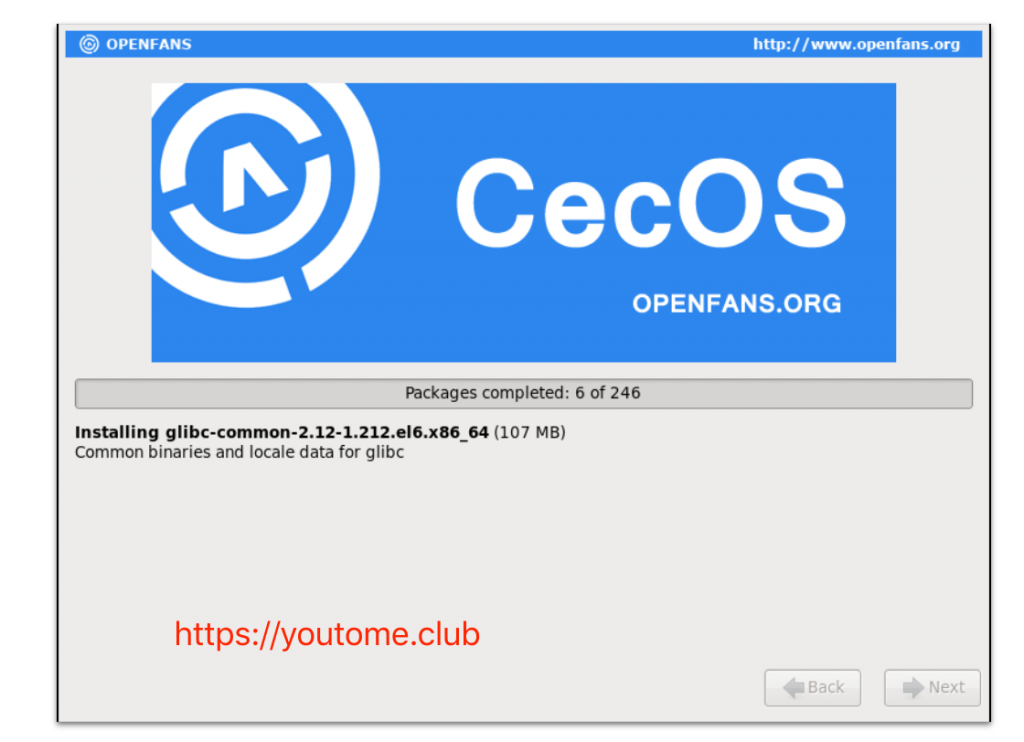

安装中
然后点击reboot

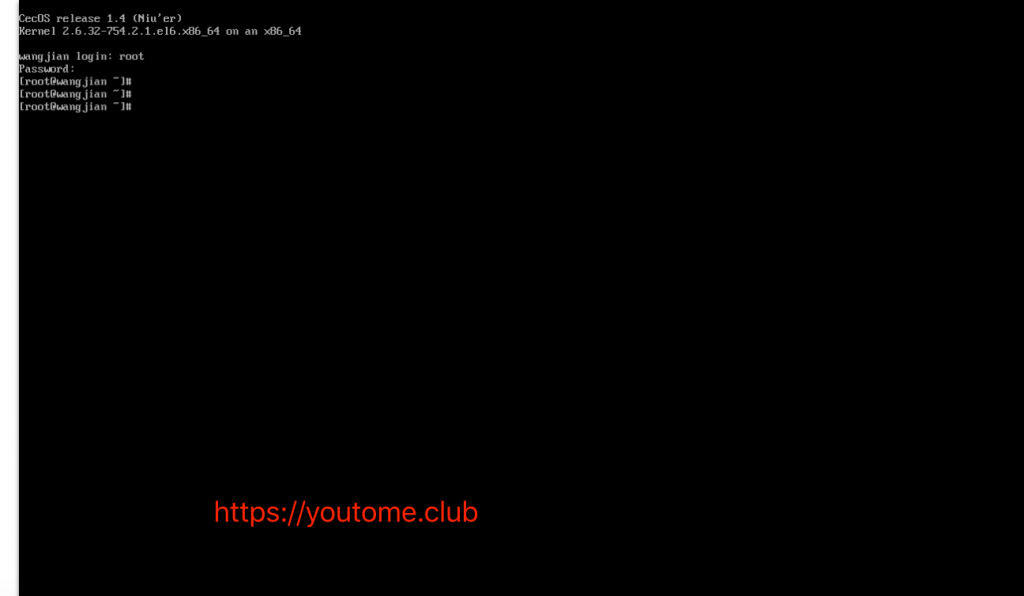

输入用户名和密码，登录系统

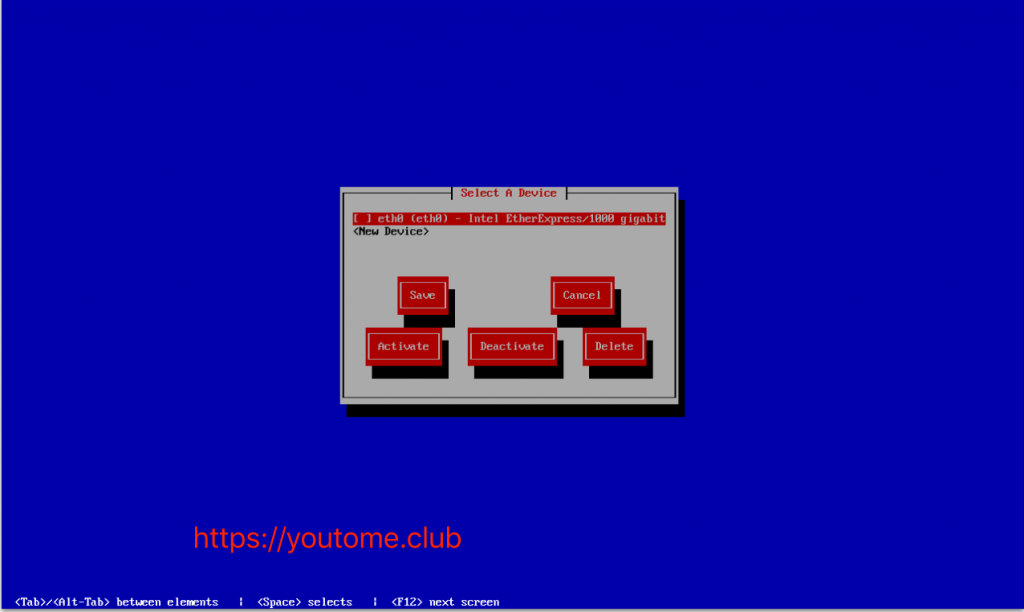

输入命令system-config-network,打卡IP配置界面,选择需要配置的设备

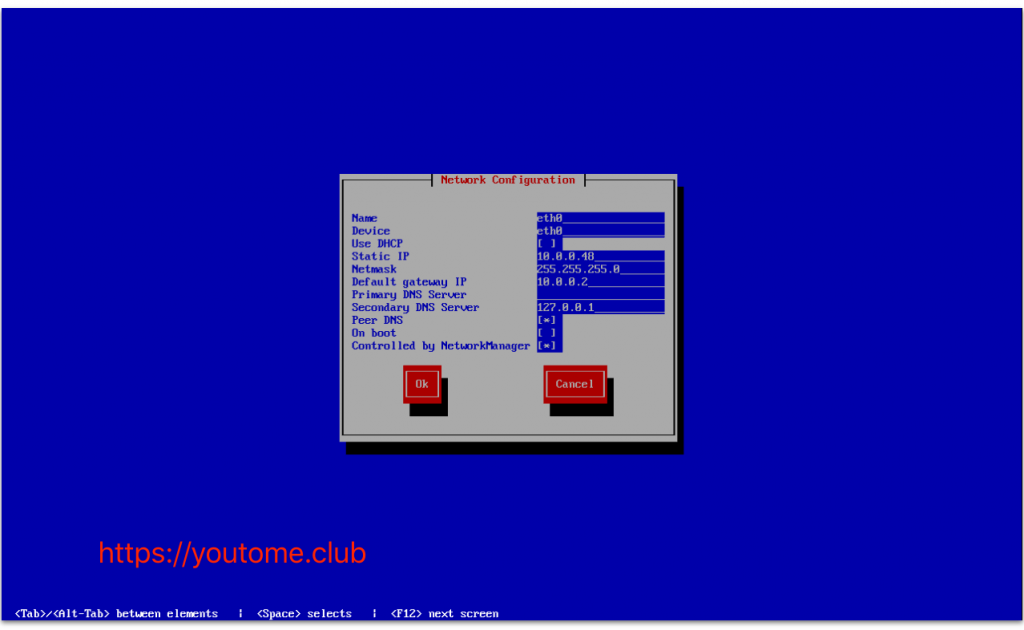

取消DHCP，并配置ip地址
选择ok并保存退出ip设置界面

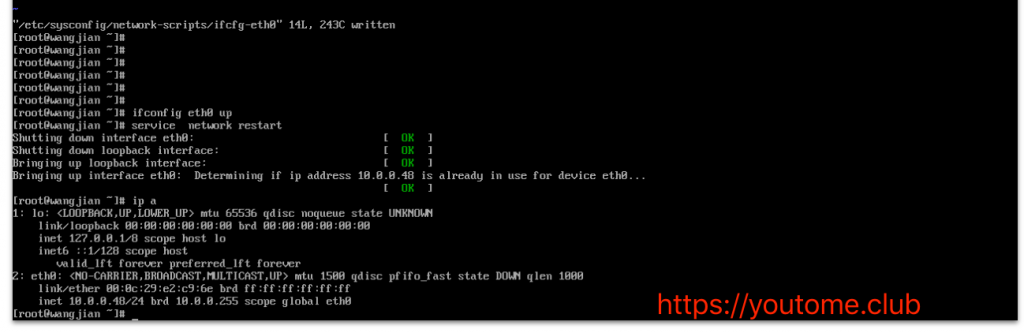

执行service network restart 重启网卡

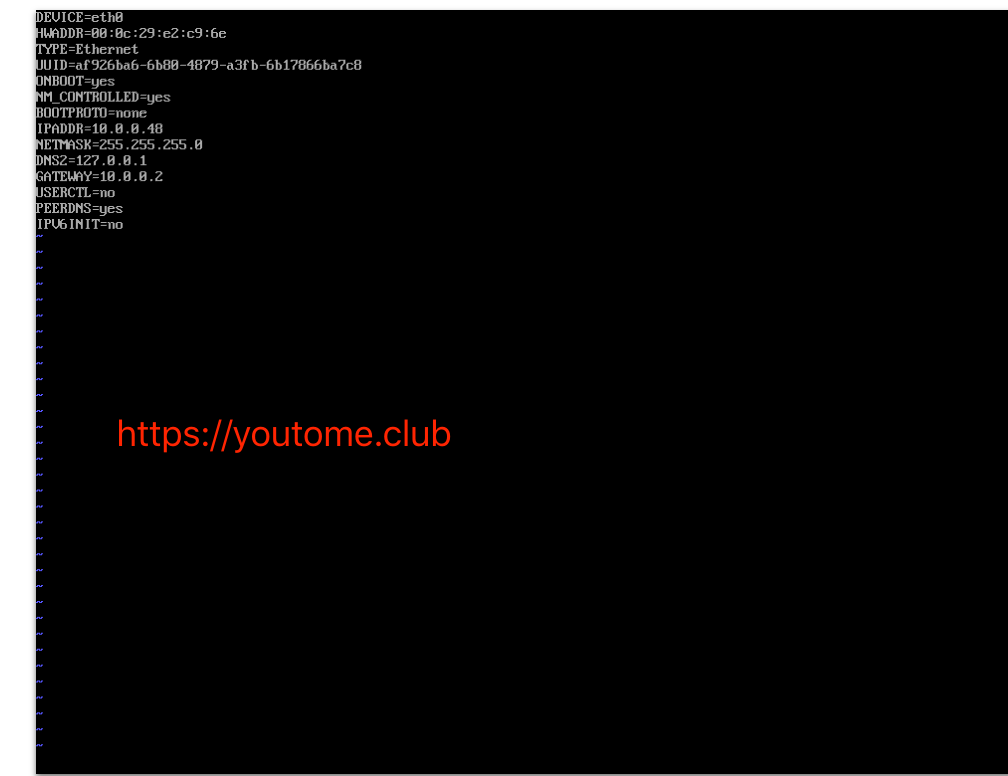

把onboot=no改为yes
默认没有启用eth0网卡，启动并重启
修改主机名/etc/hosts及/etc/sysconfig/network
vi /etc/hosts
10.0.0.48 wangjian.com
vi /etc/sysconfig/network
HOSTNAME = wangjian.com上传镜像CecOSvt-180731.iso
挂载镜像
[root@wangjian ~]# mount -o loop /root/CecOSvt-180731.iso /media/
[root@wangjian ~]# df
Filesystem 1K-blocks Used Available Use% Mounted on
/dev/mapper/vg_wangjian-lv_root
18003272 2465336 14616748 15% /
tmpfs 501504 0 501504 0% /dev/shm
/dev/sda1 487652 30369 431683 7% /boot
/root/CecOSvt-180731.iso
1742184 1742184 0 100% /media执行安装准备
[root@wangjian ~]# cd /media/
[root@wangjian media]# ./run
Copy files to your system, please wait...
Loaded plugins: fastestmirror
Determining fastest mirrors
CecOSvt-1.4 | 2.9 kB 00:00 ...
CecOSvt-1.4/filelists_db | 422 kB 00:00 ...
CecOSvt-1.4/primary_db | 476 kB 00:00 ...
CecOSvt-1.4/other_db | 291 kB 00:00 ...
Metadata Cache Created
Done!
CecOSvt Local Yum Repo maked!
Use command "cecosvt-install" to install CecOSvt packages.安装组件，选择3
[root@wangjian media]# cecosvt-install
----------------------------------------------
| Welcome to install CecOSvt 1.4! |
----------------------------------------------
| [1] CecOS Virtualization Manager (Engine) |
| [2] CecOS Virtualization Host (Node) |
| [3] All Of Them Above 1 and 2 (AIO) |
| [q] Exit |
----------------------------------------------
Select installation:
3
Add dummy nic.
dummy 2714 0
dummy0 Link encap:Ethernet HWaddr D2:9C:82:92:ED:96
inet6 addr: fe80::d09c:82ff:fe92:ed96/64 Scope:Link
UP BROADCAST RUNNING NOARP MTU:1500 Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:1 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:0
RX bytes:0 (0.0 b) TX bytes:70 (70.0 b)
Begin to install language support.
Please wait for a few minutes ...
Installation completed!
Begin to install CecOSvt [ AIO ]
Please wait for a few minutes ...
Install patchs, please wait for a while ...
Patchs installed!
Installation completed!
Installation log: /var/log/cecosvt/cecosvt-install-200823212231442784524-fiS2fNn7En609ey.log 完成后重启机器，执行vdsm-tool configure –force，配置vdsm服务
[root@wangjian ~]# vdsm-tool configure --force
Checking configuration status...
libvirt is already configured for vdsm
Running configure...
Reconfiguration of libvirt is done.
Done configuring modules to VDSM.重启vdsm服务：/etc/init.d/vdsmd restart
Shutting down vdsm daemon:
vdsm watchdog stop [ OK ]
vdsm: Running run_final_hooks [ OK ]
vdsm stop [ OK ]
initctl: Job is already running: libvirtd
vdsm: Running mkdirs
vdsm: Running configure_coredump
vdsm: Running configure_vdsm_logs
vdsm: Running wait_for_network
vdsm: Running run_init_hooks
vdsm: Running upgraded_version_check
vdsm: Running check_is_configured
libvirt is already configured for vdsm
vdsm: Running validate_configuration
SUCCESS: ssl configured to true. No conflicts
vdsm: Running prepare_transient_repository
vdsm: Running syslog_available
vdsm: Running nwfilter
vdsm: Running dummybr
vdsm: Running load_needed_modules
vdsm: Running tune_system
vdsm: Running test_space
vdsm: Running test_lo
Upgrading to unified persistence if needed
Upgrading to v3.x networking if needed
Starting up vdsm daemon:
vdsm start [ OK ]
[root@wangjian ~]#
[root@wangjian ~]#
